THE X10DR - ENHANCED MOBILITY FOR MISSION AND BUSINESS CRITICAL MOBILE RADIO USERS
- Talk in or out of the vehicle
- 60 meters… 150 meters… 300 meters…
- Back to base and team communications
- Seamless integration with mobile radios
- Secure encrypted communication
- Easy to use, intuitive design
- Minimal user training required
- Lightweight & rugged
- Smart accessories
Liberate Your Mobile Radio!™ Now talk up to 1600 feet from your vehicle!

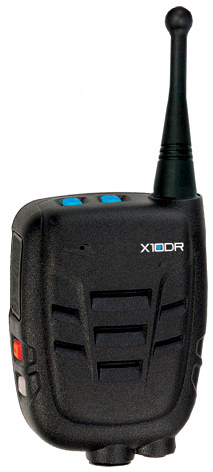

The incredibly compact, lightweight and patented X10DR® secure wireless microphone extends the power of the mobile radio to the palm of your hand, both in and out of the vehicle.
Utilizing the highly robust IEEE 802.15.1 standard the 2nd generation X10DR continues to revolutionize mobile network design by increasing user functionality and mobility whilst reducing infrastructure investment. This visionary solution provides users out of vehicle communications with the power and performance of the mobile radio.
The X10DR cuts the cord and for the first time puts the microphone and radio system access into the users hand when away from the vehicle, delivering true mobility without system compromise.
The X10DR unleashes the power of your mobile radio allowing wireless communication with a fixed mounted or vehicle mobile radio up to 500 meters and more*.
Now users can communicate with enhanced clear audio, with the power and range of a mobile radio whilst not being tied to the vehicle, allowing the user to be truly mobile in every operational environment.
*Elite and Pro models, line of sight.
2nd GENERATION MODELS
X10DR-EX2- X10DR ELITE MOBILE SECURE WIRELESS MICROPHONE INCLUDES:
- Full AES128-bit Encryption
- Waterproof IP67 rated
- Find Me™ feature
- 500 meters/1600ft Range - typical line of sight
- Standard Emergency and Programmable Advanced Emergency
- Hirose 6-Pin External Headset Audio Accessory
- Programmable DC power for Hirose accessory
- 8 watt public address audio output 3.5mm socket on gateway
- 3.5mm earpiece audio output jack on secure microphone
- Volume Controls on side
- Talkaround / 2nd PTT / function button on top of secure microphone
- Sure touch™ PTT button
- Local Talkaround capability (with additional equipment)
- High performance secure microphone antenna
- Dual secure microphones connected to single gateway capability
- Multi-Unit capability (with junction box)
- Remote / handlebar PTT capability
- Dual Radio control (with XSJB)
- Compatible with XDTC, X6WC and X10DRMC chargers
- 1450mA Li Po Battery
- Battery life: >12 Hours @ 30% receive time/typically >24 hours
- Integrated VLMC Long Metallic Clip shipped as standard
- Magnetic latching mobile X-Ponder/Charger
- RF Power: <100mW
- Frequency: 2.40-2.48GHz FH Spread Spectrum
- Shock and Vibration: Mil Std 810 C/D/E/F
- Package includes: XMPA-S “Shark fin” antenna and 1.5m interface cable**
**XCA radio adapter must be ordered separately. The XFPK X10DR 2nd Gen. Field Programming Kit is required for proper setup and/or features activation.
X10DR-PU2- X10DR PRO MOBILE SECURE WIRELESS MICROPHONE INCLUDES:
- Basic Encryption
- Weatherproof IP55 rated
- Find Me™ feature
- 500 meters/1600ft Range - typical line of sight
- Standard Emergency - triggers emergency input on mobile
- Hirose 6-Pin External Headset Audio Accessory
- 3.5mm earpiece audio output jack on secure microphone
- Volume Controls on side
- Talkaround / 2nd PTT / function button on top of secure microphone
- Sure touch™ PTT button
- Local Talkaround capability (with additional equipment)
- High performance secure microphone antenna
- Multi-Unit capability (with junction box)
- Remote / handlebar PTT capability
- Compatible with XDTC, X6WC and X10DRMC chargers
- 1450mA Li Po Battery
- Battery life: >12 Hours @ 30% receive time/typically >24 hours
- Integrated VLMC Long Metallic Clip shipped as standard
- Magnetic latching mobile X-Ponder/Charger
- RF Power: <100mW
- Frequency: 2.40-2.48GHz FH Spread Spectrum
- Shock and Vibration: Mil Std 810 C/D/E/F
- Package includes: XMPA-S “Shark fin” antenna and 1.5m interface cable**
**XCA radio adapter must be ordered separately. The XFPK X10DR 2nd Gen. Field Programming Kit is required for proper setup and/or features activation.
X10DR-XU2- X10DR CLASSIC MOBILE SECURE WIRELESS MICROPHONE INCLUDES:
- Basic Encryption
- Weatherproof IP55 rated
- 350 meters/1100ft Range - typical line of sight
- Standard Emergency - triggers emergency input on mobile
- 3.5mm earpiece audio output jack on secure microphone
- Volume Controls on top –same button position as 1st generation
- Classic PTT button
- Classic secure microphone antenna
- Multi-Unit capability (with junction box)
- Remote / handlebar PTT capability
- Compatible with X10DRDC 1st generation chargers
- 1450mA Li Po Battery
- Battery life: >12 Hours @ 30% receive time/typically >24 hours
- Integrated plastic clip- same as 1st generation
- Magnetic latching mobile X-Ponder/Charger
- RF Power: <100mW
- Frequency: 2.40-2.48GHz FH Spread Spectrum
- Shock and Vibration: Mil Std 810 C/D/E/F
- Package includes: XMPA-S “Shark fin” antenna and 1.5m interface cable**
Note: Classic Mic cannot be paired with 1st Gen X10DR X-Ponder and vice versa
**XCA radio adapter must be ordered separately, see below radio adapters table. AMP-VM mounts to be ordered separately. The XFPK X10DR 2nd Gen. Field Programming Kit is required for proper setup and/or features activation.
COMPARISON MATRIX
| Range - typical line of sight | 500 meters | 500 meters | 350 meters |
| Encryption basic | No | Yes | Yes |
| Encryption full 128-bit AES | Yes | No | No |
| Find Me™ | Yes | Yes | No |
| Talkaround / 2nd PTT / function button on top of secure microphone | Yes | Yes | No |
| Waterproof IP67 secure microphone | Yes | No | No |
| Weatherproof IP55 secure microphone | No | Yes | Yes |
| Standard emergency - triggers emergency input on mobile | Yes | Yes | Yes |
| Programmable advanced emergency - over the air alert tones and programmable “live mic” emergency remote monitor | Yes | No | No |
| Local Talkaround capability | Yes | Yes | No |
| Hirose headset audio port on secure microphone | Yes | Yes | Yes |
| Programmable DC power for Hirose accessory | Yes | No | No |
| Low profile Off/On button below antenna | Yes | Yes | No |
| EVR2 Enhanced audio processing / echo & packet noise cancellation | Yes | Yes | Yes |
| Volume controls on side | Yes | Yes | No |
| Volume controls on top | No | No | Yes |
| Sure touch™ PTT button | Yes | Yes | No |
| Classic PTT button | No | No | Yes |
| High performance secure microphone antenna | Yes | Yes | No |
| Classic secure microphone antenna | No | No | Yes |
| Dual secure microphones connected to single gateway capability | Yes | No | No |
| Multi-Unit capability (with junction box) | Yes | Yes | Yes |
| Remote / handlebar PTT capability | Yes | Yes | Yes |
| Dual Radio control (with XSJB) | Yes | No | No |
| 8 watt public address audio output 3.5mm socket on gateway | Yes | No | No |
| 3.5mm earpiece audio output jack on secure microphone | Yes | Yes | Yes |
| Compatible with XDTC, X6WC and X10DRMC chargers | Yes | Yes | No |
| VLMC long clip shipped as standard | Yes | Yes | No |
Features may also require programming to activate or use of a special function box.
1st GENERATION MODELS*** (intended to be discontinued)
X10DR-XX1 ADVANCED MOBILE SECURE WIRELESS MICROPHONE INCLUDES:
- Safer 128-bit Encryption
- Weatherproof IP55 rated
- 300 meters/1000ft Range - typical line of sight
- Standard Emergency - triggers emergency input on mobile
- Hirose 6-Pin External Headset Audio Accessory
- 3.5mm earpiece audio output jack on secure microphone
- Volume Controls on top
- Classic PTT button
- Classic secure microphone antenna
- Multi-Unit capability (with XIB-TA/XFB-TA junction box)
- Remote / handlebar PTT capability
- Compatible with X10DRDC 1st generation chargers
- 1450mA Li Po Battery
- Battery life: >12 Hours @ 30% receive time/typically >24 hours
- Integrated plastic clip
- Magnetic latching mobile X-Ponder/Charger
- RF Power: <100mW
- Frequency: 2.40-2.48GHz FH Spread Spectrum
- Shock and Vibration: Mil Std 810 C/D/E/F
X10DR-XU1 STANDARD MOBILE SECURE WIRELESS MICROPHONE INCLUDES:
- Safer 64-bit Encryption
- Weatherproof IP55 rated
- 300 meters/1000ft Range - typical line of sight
- Standard Emergency - triggers emergency input on mobile
- 3.5mm earpiece audio output jack on secure microphone
- Volume Controls on top
- Classic PTT button
- Classic secure microphone antenna
- Multi-Unit capability (with XIB-TA/XFB-TA junction box)
- Remote / handlebar PTT capability
- Compatible with X10DRDC 1st generation chargers
- 1450mA Li Po Battery
- Battery life: >12 Hours @ 30% receive time/typically >24 hours
- Integrated plastic clip
- Magnetic latching mobile X-Ponder/Charger
- RF Power: <100mW
- Frequency: 2.40-2.48GHz FH Spread Spectrum
- Shock and Vibration: Mil Std 810 C/D/E/F
*** XMC Cable for specific radio must be ordered separately, see below radio interface cable table. AMP-VM mounts and External Antenna must be ordered separately.
The X10DR works seamlessly with your existing vehicle mobile radios.
- Mission Critical & Police
- Emergency Services- Paramedics/Ambulances, Firefighters
- Commercial Fleets
- Electrical Authorities
- Utilities (Gas, Water, Telephone Services)
- Mining and Constructions
